Setting up a Development Environment

First you’re gonna need some software:

• Git or one of the many third-party UIs that make it easier to use. Make sure to let it install to your PATH like this.
• Python 3.7 or higher. Make sure to install it into your PATH on Windows. Also make sure the ‘py launcher’ option is enabled when installing on Windows. You should get python from python.org. Versions installed from the windows store sometimes cause build issues.
• .NET 9.0 SDK. Visual Studio also installs this if you’re on Windows.
  • ARM (M1) Mac users: You need to make sure to install x64 .NET, not ARM .NET. The engine does not currently run natively on Mac ARM so using x64 via Rosetta 2 emulation is recommended.
• Preferably an IDE to make development not painful (all free options unless otherwise noted):
  • For all platforms, Rider is one of the best IDEs available, and many SS14 maintainers and contributors prefer it over Visual Studio. It used to be paid but now it’s free for Non-Commercial use.
  • For Windows, Visual Studio 2022 Community. For a minimal install (Jesus it’s large) you’re gonna want the .NET desktop development workload, the C# compiler, C# support, NuGet package manager, MSBuild and .NET 8 SDK or something along those lines.
  • For all platforms, Visual Studio Code with the C# extension. Usually an inferior IDE experience than full blown IDEs like regular Visual Studio, but some experienced programmers enjoy the minimalism.
    • Exclusive to VSCode/VSCodium: you can install our community made Robust YAML extension for better Robust Toolbox YAML experience on top of YAML Language Support extension.
  • For all platforms, VSCodium with the C# extension. Open source and without the bloat and tracking of VSCode.

winget install Git.Git
winget install Python.Python.3.13
winget install Microsoft.DotNet.SDK.9

Video guide

Are you stuck? Don’t understand how to do a certain part? This video should help

This video is intended to be followed along with the guide and may become out of date.

1. Cloning

Even if you already know Git, scroll down to read the section about submodule setup. Seriously.

If you’re familiar with Git, just fork and clone the repository, set up remotes, and then follow the submodule guide below.

If you’re unfamiliar with Git, or just don’t know how to proceed, follow the Git for the SS14 Developer guide, which goes in depth on how to contribute to the game and how to set up your initial repository. It also touches on submodule setup, but that’s included here as well because of its importance.

2. Submodule Setup

We have an automatic submodule updater so you don’t have to worry about running git submodule update --init --recursive all the time.

Run RUN_THIS.py inside the repo you downloaded with Python. Preferably from a terminal too. This should take a few seconds so if it instantly stops then check if you are running Python 3.7+ otherwise keep reading.

If running RUN_THIS.py immediately opens and closes a window: do not worry. This does not mean that it failed. The script closes automatically upon completion, so if you want to verify that it worked properly, check the submodule /RobustToolbox/ and verify that all the files are there. If not try checking out the troubleshooting at the bottom of this page.

Note: If you have any issues when getting started with missing files it’s recommended you run git submodule update --init --recursive by hand once in case something went wrong with python.

If you do want to modify the engine directly however, or you want to update the submodule manually (the auto updating can be a pain), make a file called DISABLE_SUBMODULE_AUTOUPDATE inside the BuildChecker/ directory.

And with that, your repo is now properly setup!

3. Setup an IDE

Visual Studio

1. Download Visual Studio Community (if you don’t own a paid version) from here
2. Run the installer and choose .net desktop development, then install
3. If the installer asks you for a development environment select Visual C#.
4. Open Visual Studio
5. Select Open a project or solution, then navigate to your cloned repository from above and open SpaceStation14.sln

JetBrains Rider

1. Install Rider, we suggest using Jetbrains Toolbox so it can also automaticly update in the future.
2. Go through the setup.
3. Press “Open” and select SpaceStation14.sln
4. If you plan to do engine development you must add Robust Toolbox to the Directory Mappings so that Riders VCS can detect changes to Robust. Open Riders settings and go to the Version Control section > Directory Mappings and press the plus (+) button. For Directory point it to the RobustToolbox folder in the project and Git as the VCS

VSCodium

1. Download VSCodium Here or more directly on Github Here (On the latest release, click the assets dropdown then scroll to the ZIP or .exe for your OS).
2. Run the installer or extract the zip file to a location of your choice and run the .exe once extracted.
3. Once installed, navigate to the Extensions tab (part way down on the top left corner bar, looks like 4 tiles) and search for “C#”. An extension by “Muhammad-Sammy” with over 70K downloads and a green / white logo is the one, install that. Extension ID muhammad-sammy.csharp.
4. Select File > Open Folder, then navigate to your cloned repository from above and open this full folder.
5. When asked to open a solution, select SpaceStation14.sln. Alternatively, set dotnet.defaultSolution setting to SpaceStation14.sln in your workspace settings.
6. Now you can run and debug your game. Select the icon above “Extensions” from earlier for “Run and Debug” and from the dropdown next to the green play button you can select “Server/Client”. This will run both the client and server, opening the game for you to debug. Relevant information will pop up in the debug along the bottom. Select the processes in the call stack on the left to change what you are debugging.

4. Starting SS14

Now you can get on to compiling the client and server! Use your flavor of IDE to open the solution file SpaceStation14.sln and press the build button.

To compile without an IDE, run dotnet build in the Space Station 14 repo directory. Then, call the following commands to run the client and server.

• dotnet run --project Content.Server
• dotnet run --project Content.Client

Both these commands use a debug configuration by default. To enable release optimizations, add --configuration Release to the dotnet invocation.

Note: If you’re having problems with dotnet not finding libssl (e.g. when using libressl), try setting the CLR_OPENSSL_VERSION_OVERRIDE environment variable to the appropriate version. For instance, set it to 48 if your /usr/lib contains libssl.so.48. If that doesn’t work you can also try running ln -s /usr/lib/libssl.so /usr/local/lib/libssl.so.1.0.0 instead.

5. Configuring Build Options

The SS14 client and server are independent projects, but both can launch with a single button somewhere in your IDE. This needs to be set up, however. Note: It is recommended that you run Content.Client and Content.Server when developing from your IDE. Not Robust.Client or Robust.Server. The reason is that running Content.* will make your IDE aware of dependencies correctly and ensure everything is rebuilt nicely. If you run Robust.Client directly you have to make sure the solution is fully built every time which is annoying and easy to forget. If you’re unsure what Robust or Content are, check out this page on how the project is organized.

Visual Studio 2022

In Visual Studio 2022, you can configure the build button to run both the server and client by right clicking the solution, then selecting Configure StartUp Projects.... Once the menu pops up, then select Multiple startup projects: and set the action for Content.Client and Content.Server to Start. Once you apply the changes, hitting the big Start button with a green arrow next to it should launch both client and server at the same time.

Note: If you’re having problems with the program not getting built right, you may need to set always build before run. Go to Options Projects and Solutions/Build and Run and change On Run, when projects are out of date to Always build.

In VS you can also use the keys F7 to build the project and F5 to run it.

Visual Studio Code

The C# extension provides a "coreclr" launch type which can be used to run the Content.Server and Content.Client executables in their respective bin/ directories. A compound launch configuration can be used to run the server and client at the same time.

Command Line

Build with dotnet build and run the client and server on different command lines with:

• dotnet run --project Content.Server
• dotnet run --project Content.Client

There’s also definitely some way to run two commands at the same time, but you should probably google it.

JetBrains Rider

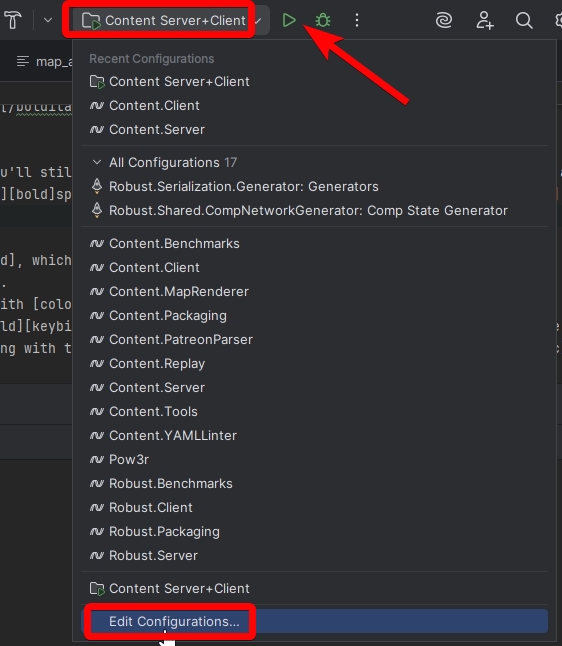

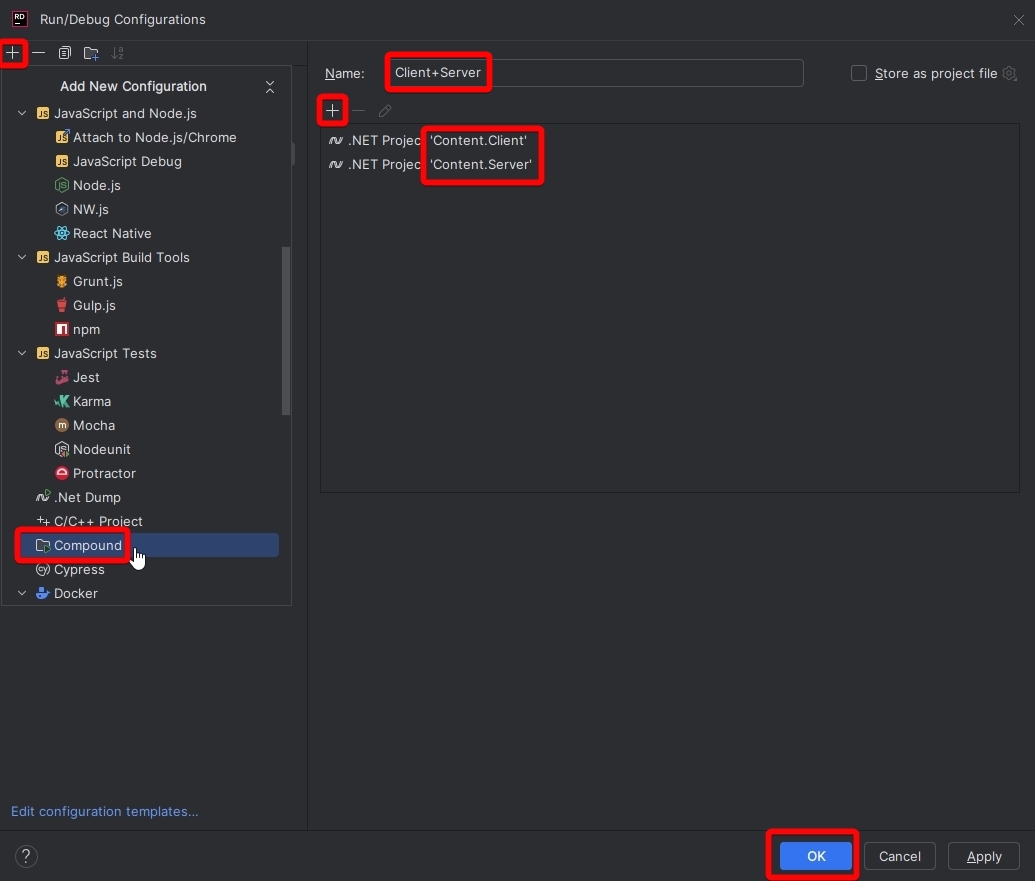

In Rider you can create a “compound configuration” to run or debug both client and server at the same time. Quite convenient!

6. Configuring IDE directories

C# IDEs like Visual Studio and Rider do not automatically show the Resources folder in the project. This folder contains all non-C# files such as sprites, audio, and most importantly, YAML prototypes. These instructions will explain how to get this folder to show up in your IDE, so you can easily work with it.

Visual Studio 2022

In Visual Studio, you can switch the Solution Explorer from “solution” view (only showing the C# projects) to “folder” view (showing all the files in the project). Press the button to switch views as follows, then select the folder view:

After this, the Solution Explorer should look something like this, and you should be able to easily access the Resources folder:

JetBrains Rider

In Rider, you can “attach” the resources directory to the solution. Do this by right clicking the solution in the explorer, then doing “Add” -> “Existing Folder…”. Select the “Resources” directory in the file picker.

After this, your solution view should look something like this, and you should be able to easily access the Resources folder:

Visual Studio Code

Visual Studio Code shows all files by default, so no extra setup is needed here.

Reproducible Development Environment with Nix/NixOS

An easier way to set up your development environment for Linux users is to leverage Nix. Nix is a package manager and a functional domain specific language that allows one to declare anything from development environments to entire systems. In order to prevent the dreaded “it works on my machine” conundrum, we can declare a development environment in Nix that spawns an isolated reproducible shell.

Setting up Nix/NixOS with flakes

You can install Nix either through installing the NixOS distribution itself or by using the script that is compatible with all Linux distributions that use systemd (Ubuntu, Fedora, Mint etc). For the sake of simplicity and convenience, it is recommended that you install Nix in a distribution that you are comfortable with instead of making the jump to a different operating system entirely. It is also possible to use Nix with MacOS through nix-darwin though this has not been tested as of yet and thus not covered in this article.

Once Nix is installed, you should enable experimental features such as flakes. If you are on a non-NixOS distribution, you can just add the following to your ~/.config/nix/nix.conf.

• experimental-features = nix-command flakes

If you’re using NixOS, you only need to add these options to your configuration.nix file.

• nix.settings.experimental-features = [ "nix-command" "flakes" ];

For more information about how to enable Nix flakes, see here.

Using Nix flakes for a Robust Development Environment

NB it is technically required that you already have Git installed but in the case with most Linux distributions it comes preinstalled. In the highly unlikely case that you do not:

• Use your distribution’s package manager

• Declare it in your configuration.nix file if you’re using NixOS. It’s recommended that you check the appropriate section in the NixOS manual but in short you should add pkgs.git into the environment.systemPackages attribute.

Using your terminal you can simply navigate to the root directory of your SS14 repo and run:

• nix develop

Nix will automatically handle all dependencies as declared by shell.nix and called by the flake.nix file. You will have a new ephemeral shell (known as a devShell) that has everything that you need installed to build SS14 from source.

This remains the reason as to why flakes are highly recommended despite being considered an experimental feature. We can make sure that everyone has the same versions of dependencies by specifying the nixpkgs collection version in the input attribute of the flake and locking the versions in a flake.lock file. In this way, all contributors that use Nix/NixOS get to have the exact same development environment. No pun intended, but that is pretty robust!

(Optional) Run JetBrains Rider through Nix

You can then use either use an editor or IDE of your choosing. However within the shell that you already spawned you can just specify that you require JetBrains Rider. Run this command in your devShell.

• NIXPKGS_ALLOW_UNFREE=1 nix shell nixpkgs#jetbrains.rider --impure

From your new shell you can start a “detached” JetBrains Rider process by running something like:

• nohup rider >/dev/null 2>&1 &

And voila! You have robustly set up your development environment in a way that doesn’t result in pesky buildup of “state”. You can practically work on SS14 from any Linux distribution (granted that they use systemd) without irreversibly changing your system.

Troubleshooting

Make sure the first three items on top are downloaded.

RUN_THIS.py not running

Check that python is installed from the website and not the Microsoft Store. If it’s installed from the Microsoft Store, uninstall it then download and install from the python website.

If you are on Windows and get redirected to the Microsoft Store or encounter a message in your terminal claiming that Python is not installed. This issue may be caused by a stupid Microsoft shortcut. Which you can disable by searching for Manage App Execution Aliases and disabling the two python references

py not found

If python was installed from the website and the python command works, but you still get the error ‘py is not installed’, then check if C:\WINDOWS\py.exe works. If so, then add C:\WINDOWS to your path.

System.DllNotFoundException: Unable to load DLL ‘freetype6’ or one of its dependencies: The specified module could not be found.

Unhandled exception. Robust.Shared.IoC.Exceptions.ImplementationConstructorException: Robust.Client.Graphics.FontManager threw an exception inside its constructor.
 ---> System.DllNotFoundException: Unable to load DLL 'freetype6' or one of its dependencies: The specified module could not be found. (0x8007007E)
   at SharpFont.FT.FT_Init_FreeType(IntPtr& alibrary)
   at SharpFont.Library..ctor()
   at Robust.Client.Graphics.FontManager..ctor(IClyde clyde) in C:\Users\Larme\Downloads\space-station-14\RobustToolbox\Robust.Client\Graphics\FontManager.cs:line 33
   --- End of inner exception stack trace ---
   at Robust.Shared.IoC.DependencyCollection.BuildGraph() in C:\Users\Larme\Downloads\space-station-14\RobustToolbox\Robust.Shared\IoC\DependencyCollection.cs:line 348
   at Robust.Shared.IoC.IoCManager.BuildGraph() in C:\Users\Larme\Downloads\space-station-14\RobustToolbox\Robust.Shared\IoC\IoCManager.cs:line 271
   at Robust.Client.GameController.InitIoC(DisplayMode mode) in C:\Users\Larme\Downloads\space-station-14\RobustToolbox\Robust.Client\GameController\GameController.IoC.cs:line 16
   at Robust.Client.GameController.ParsedMain(CommandLineArgs args, Boolean contentStart, IMainArgs loaderArgs, GameControllerOptions options) in C:\Users\Larme\Downloads\space-station-14\RobustToolbox\Robust.Client\GameController\GameController.Standalone.cs:line 49

Uninstall .NET Core SDK x86. Install .NET Core SDK x64.

The client and server aren’t available in Visual Studio to configure in Multiple startup projects

This may be because you opened the project as a folder rather than a solution. Make sure you open it as a solution and click the space station 14 .sln file.

The system cannot find the specified file RUN_THIS.py

The system cannot find the specified file error usually means that OneDrive is conflicting with the git repository. Clone the git repo outside of OneDrive or disable syncing for the cloned folder.
